Define sections to view result diagrams

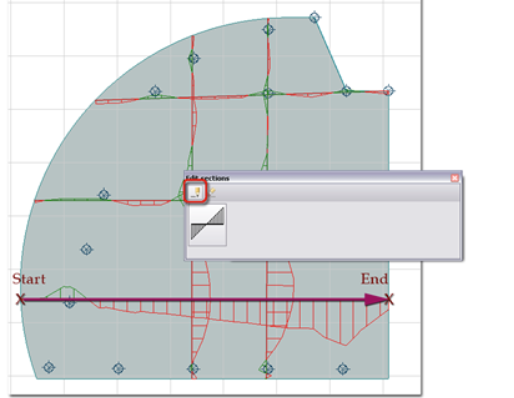

I want to define a section on a planar object but can't get a grip on how. My aim is to be able to view result diagrams from my section in a similar fashion to the figure below!
StruSoft
Hi Mohammad,

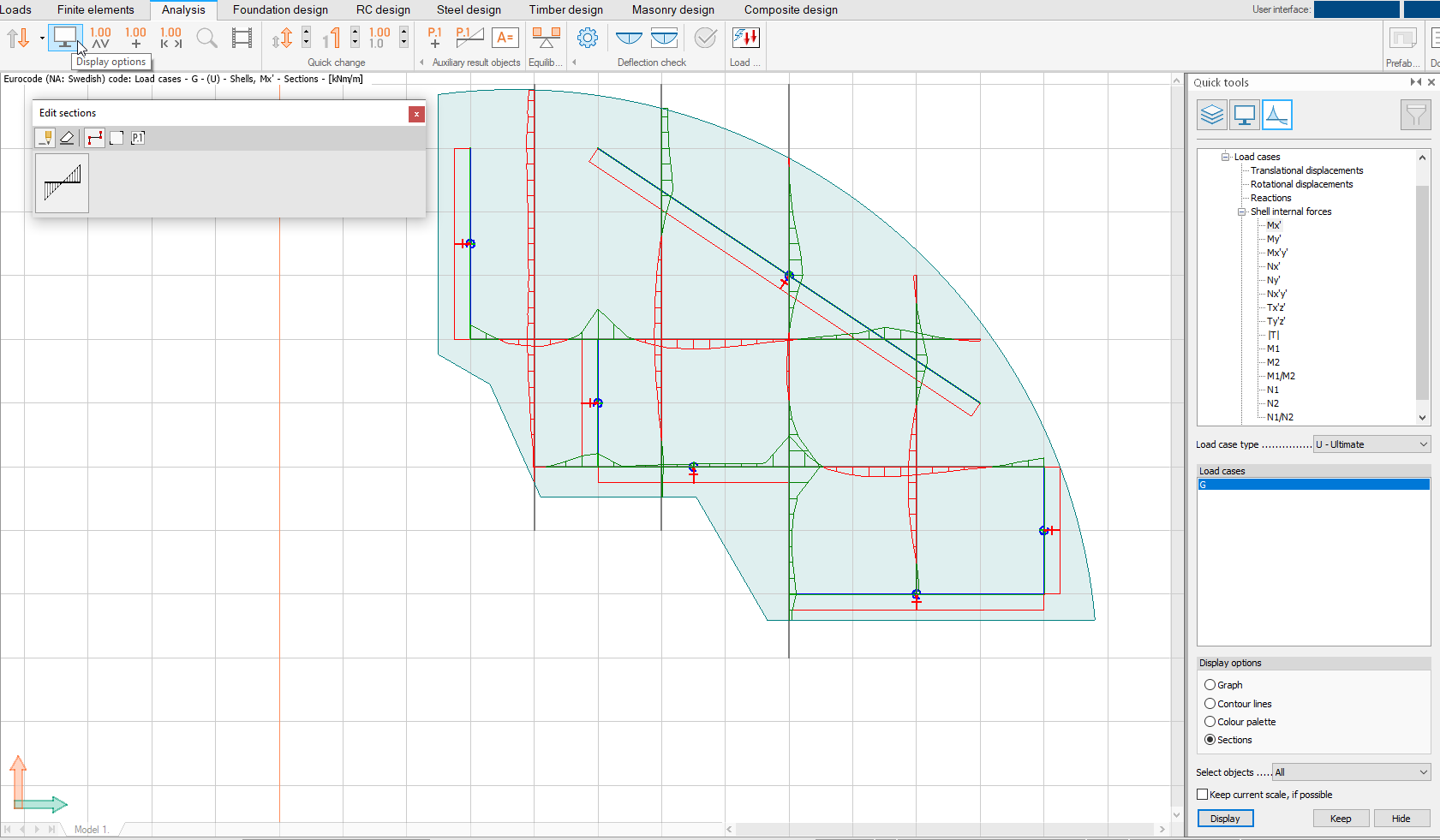

If you select the result to be displayed as Sections, you can go to Display options and edit your sections.
You can also take a look at Labelled sections which you can read more about on the wiki here: https://wiki.fem-design.strusoft.com/xwiki/bin/view/Manuals/User%20Manual/Display%20results/#HLabelledsections
