Non-linearity and “Why do I get tension/compression where there should be no tension/compression?”

The most common answer to this question is because non-linear effects (e.g. compression-only supports) are not active in load cases, but are in load combinations.

As a result, supports or connections that should release in tension/compression will still behave linearly in load case results, leading to seemingly incorrect forces.

Here's why

In FEM-Design non-linear behaviour is possible to consider for supports (e.g. uplift), connections and truss members (e.g. tension-only). The analyses where this is included are Load combinations, Imperfections and Stability

Figure 1. Analysis types that include non-linear effects.

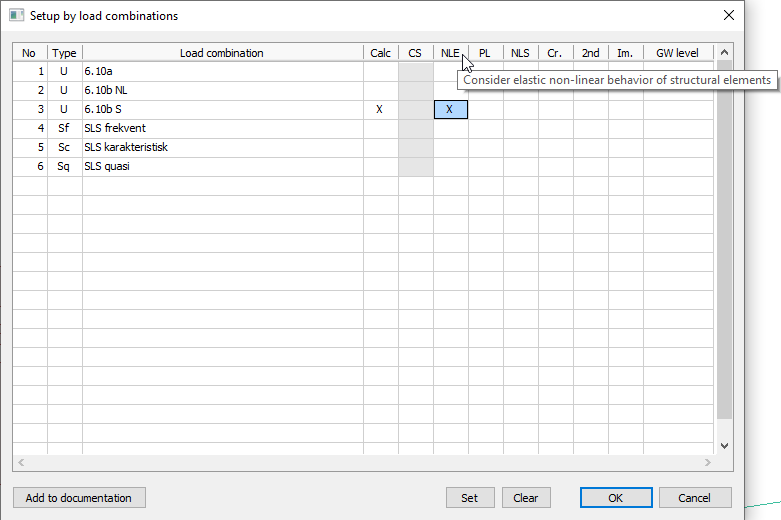

To activate non-linear effects, tick the “NLE” checkbox at Calculations > Analysis > Load combinations > Setup by load combinations.



Figure 2. How to activate non-linear effects.



Since these boundary condition non-linearities are not in effect for the results of Load cases, non-linear results must be viewed in Load combinations.

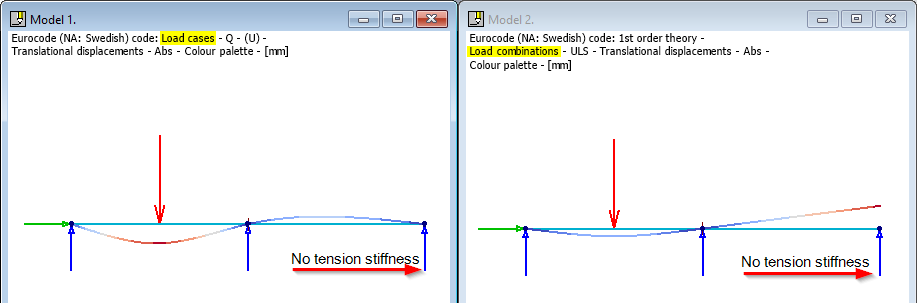

Figure 3. Non-linear support ineffective in Load cases (left), so tension is not released. In Load combinations (right), the non-linear behaviour is active and the results match the intended support condition.
